RQ-440CA

It is designed to fix both ends of cut and interlocked shutter slats with plastic covers.

5 axes servo motor controlled.
Fixing the caps with staples made from steel
It is controlled by MSI all in one pc which has 15.6-inch touch screen.
Pc controlled with Windows operating system.
Machine is controlled with motion control technology. (cnc machine)
Increase of productivity.
Relieves the employees.
Production capacity 100-120 pcs / 8 hours
Max. Profile bar length is 6500 mm.
Roller shutter width: min. 500 mm – max. 3500 mm
Barcode reader system is optional.
It can be adapted to the factory automation. Easy and fast data transfer because of Pc (by usb memory, cable, cd, wireless,
Ethernet, mail etc.)
Remote control service technology.

RQ-440CA

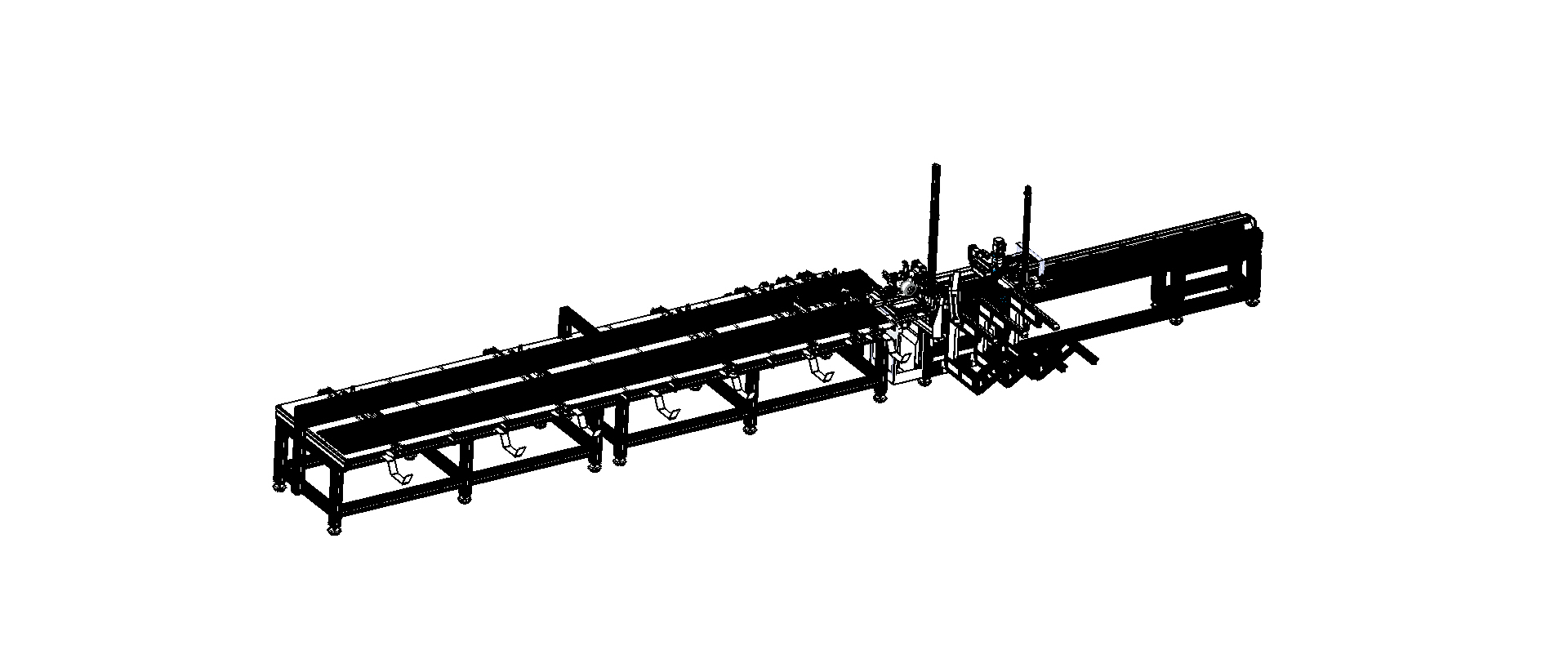

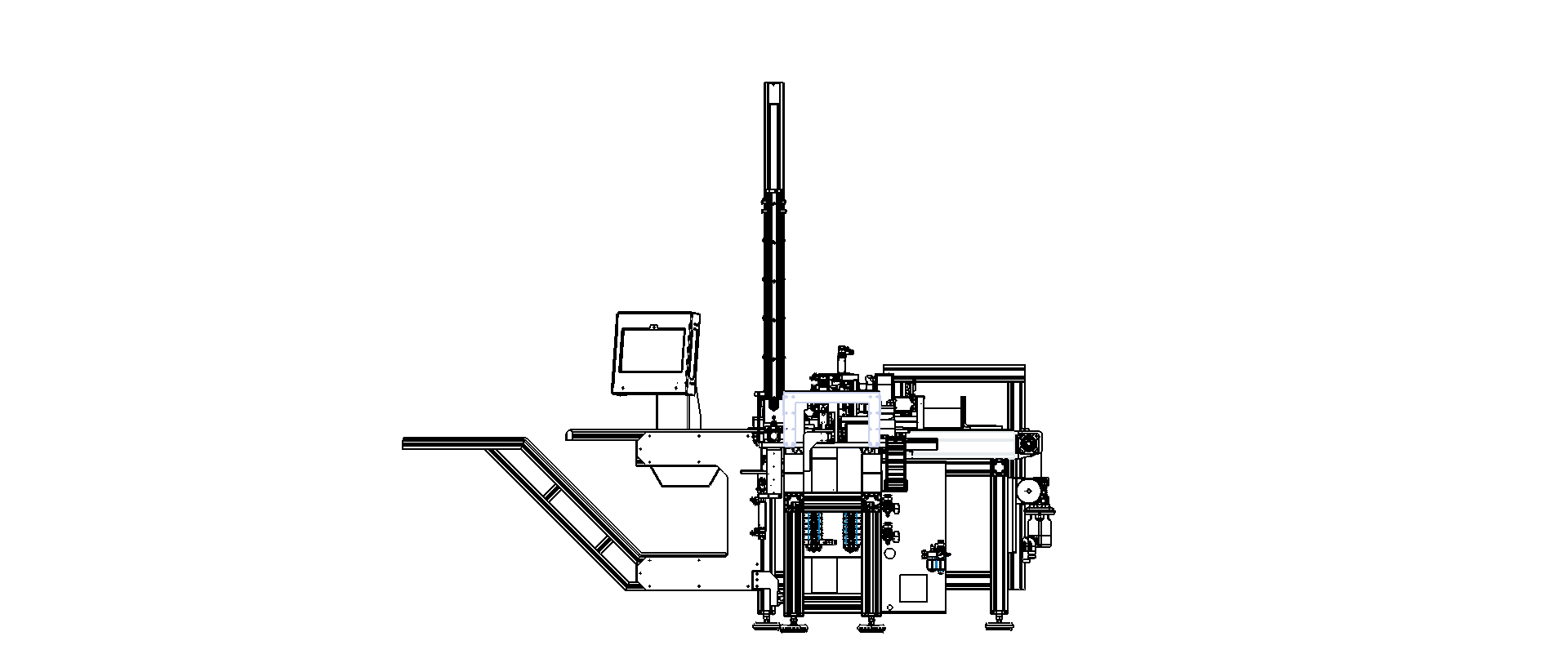

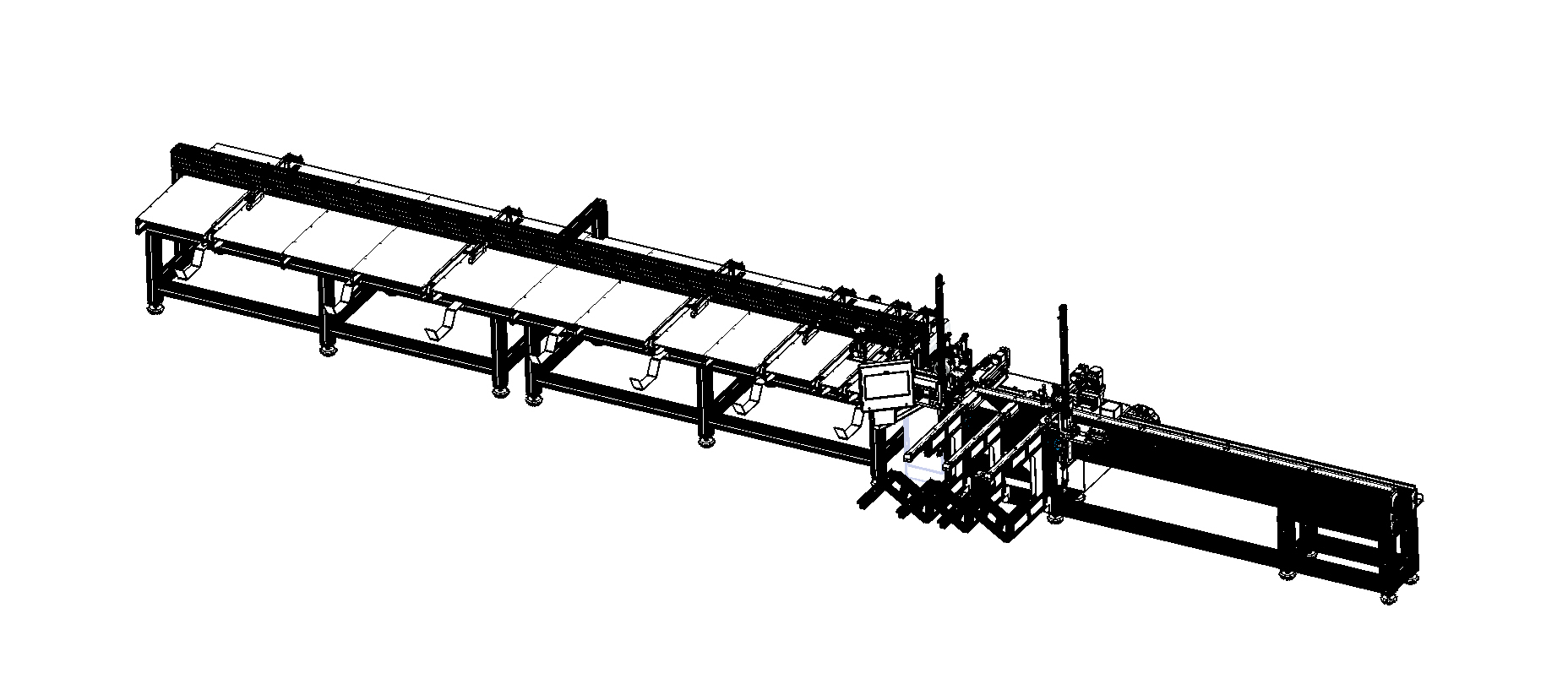

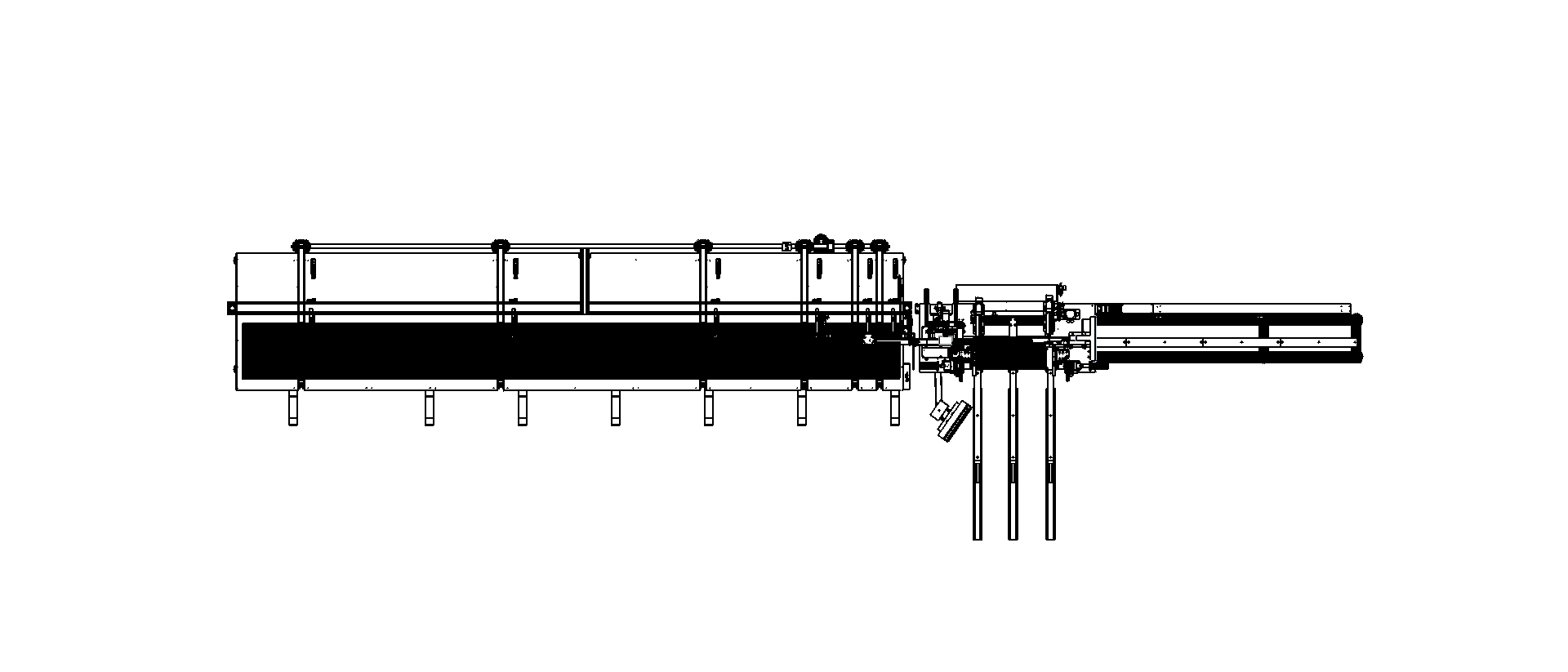

Roller Shutter Caps Locking Machine with Profile Feeding, Cutting and Assembly Unit
RQ-440CA

Roller Shutter Caps Locking Machine with Profile Feeding, Cutting and Assembly Unit
